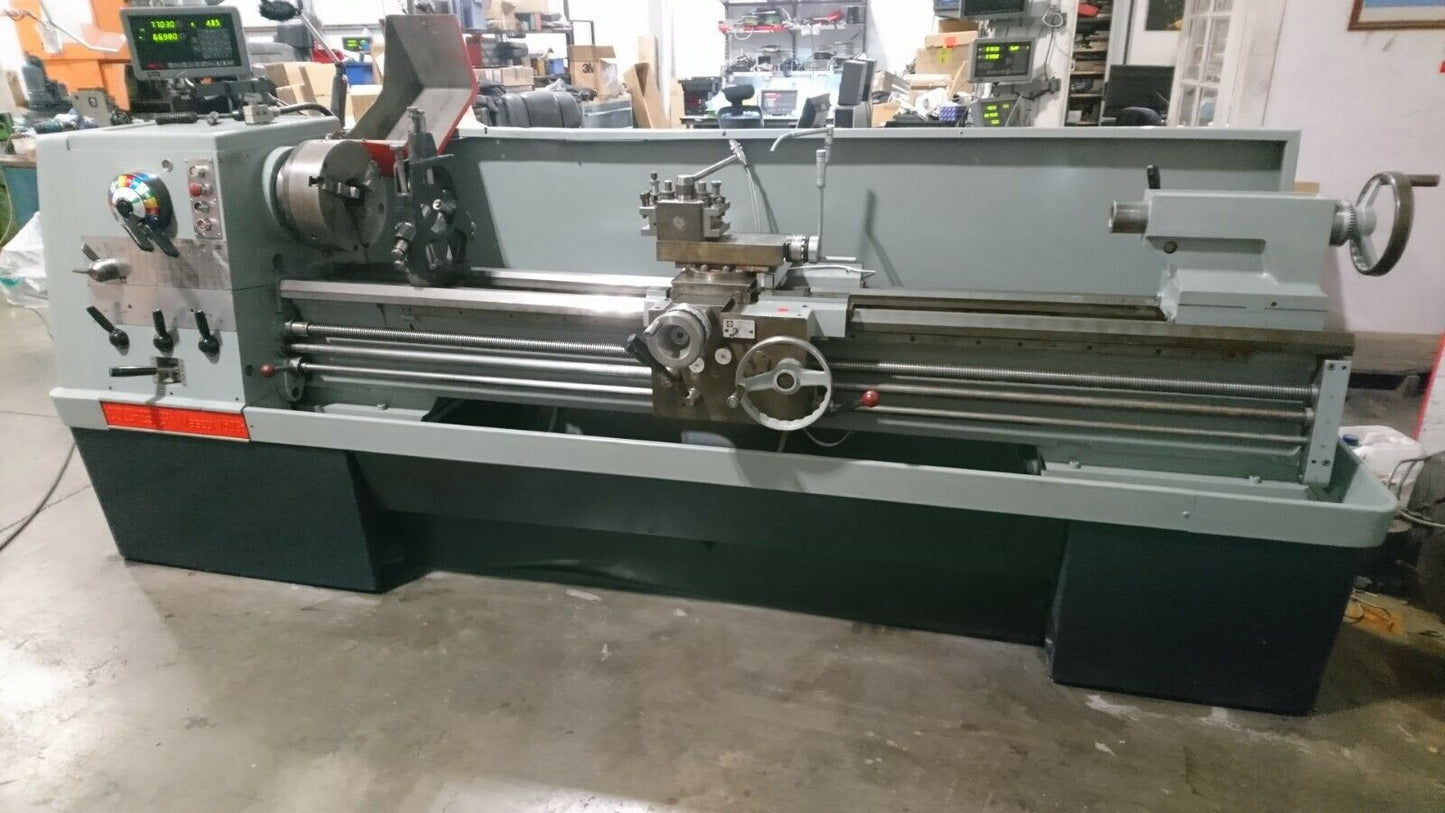

Colchester Mascot Lathe Digital Readout system

Digital Readout system to suit the Colchester Mascot - there are different bed lengths available so ensure you check the overall bed length and the between the centres of the lathe the options are below.

If you need technical help just call tel 0151 608 8666 ask for Darren

1. 40 inch between centres has an overall bed length of 1500mm

2. 60 inch between centres has an overall bed length of 2200mm

3. 80 inch between centres has an overall bed length of 2500mm

4. 100inch between centres has an overall bed length of 2700mm

5. 120inch between centres has an overall bed length of 3000mm

Every kit comes with the console -  both scales X and the long Z axis which are specific to the machine with a full fit specific to the Mascot Lathe and our no quibble 2 year warranty.

In more Detail below

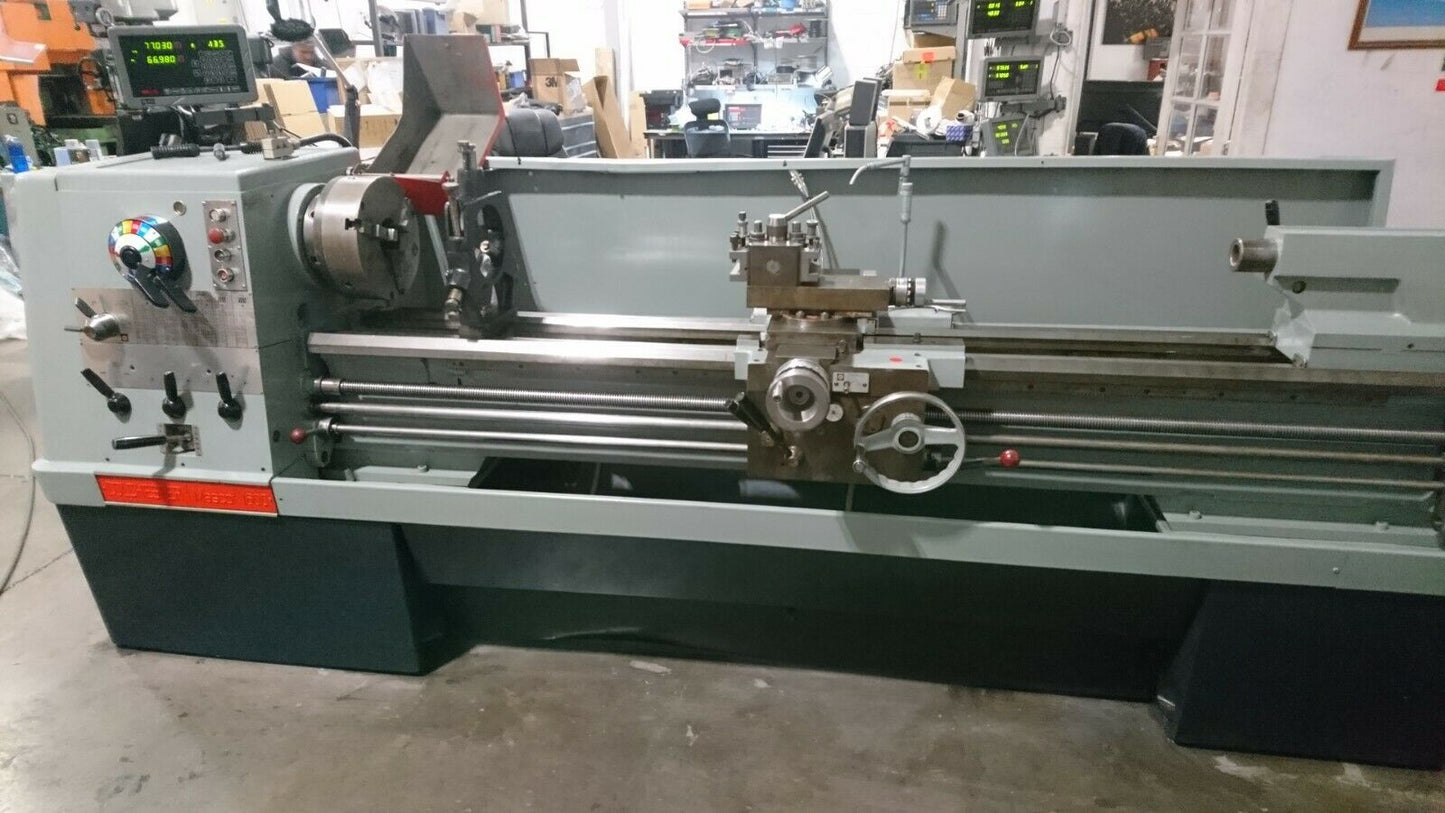

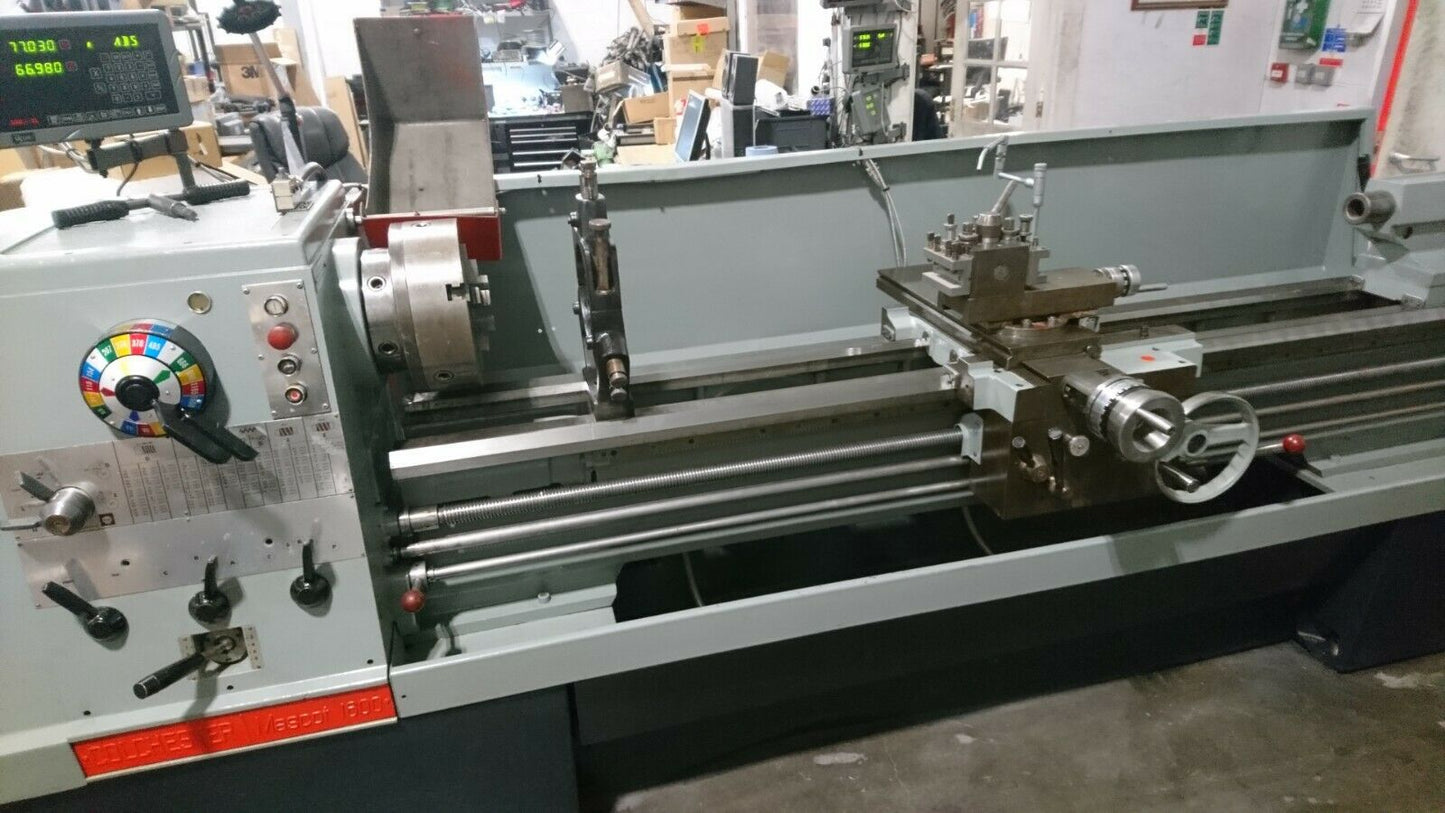

The Goodwin Digital Readout kit for the Colchester Mascot lathe comes with the Console with an arm, which is an L shaped design so you can fit the arm to the rear of the lathe main spindle gearbox but because the arm is L shaped the console ends up much closer to the operator keeping all the buttons in easy reach.

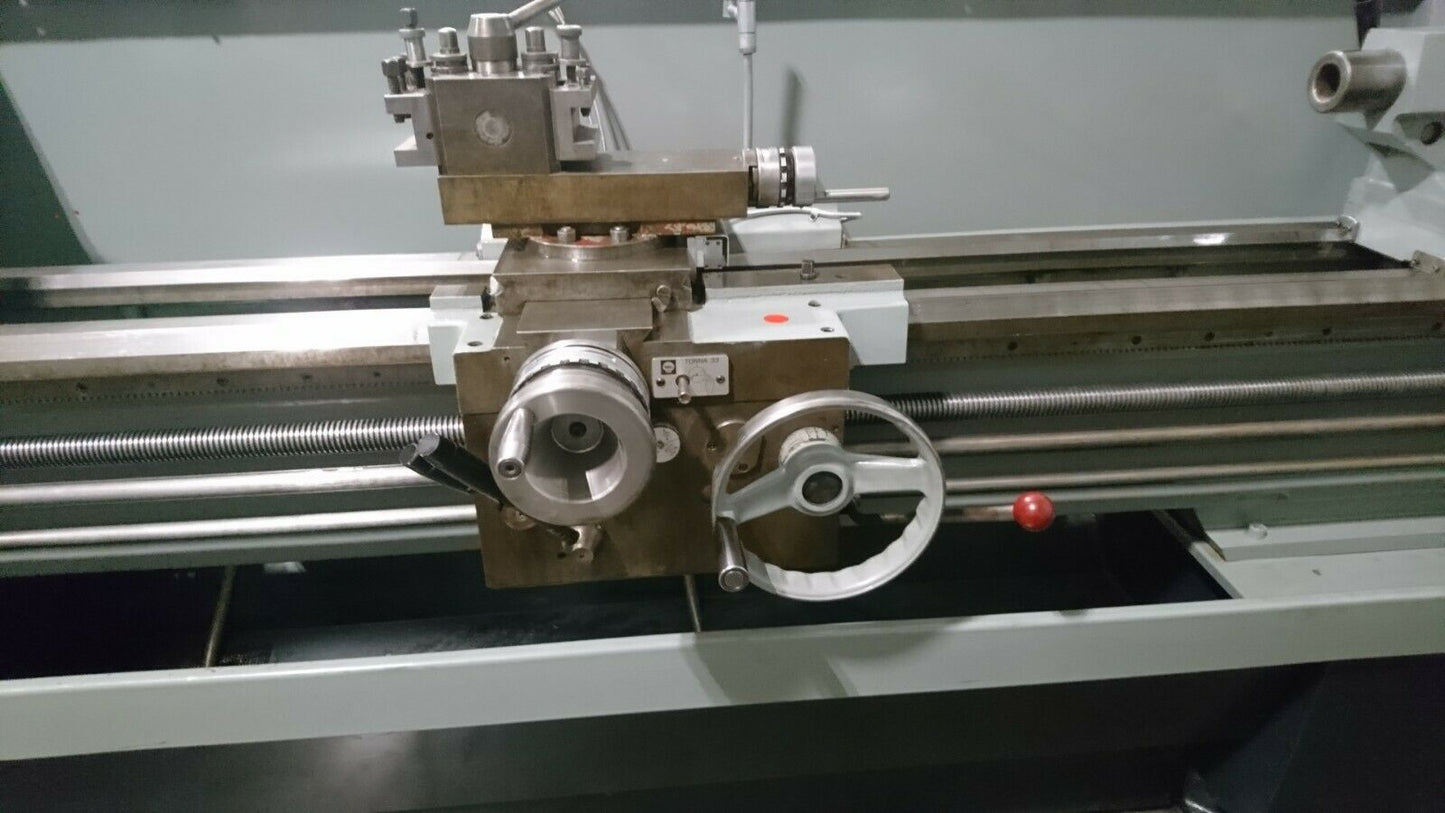

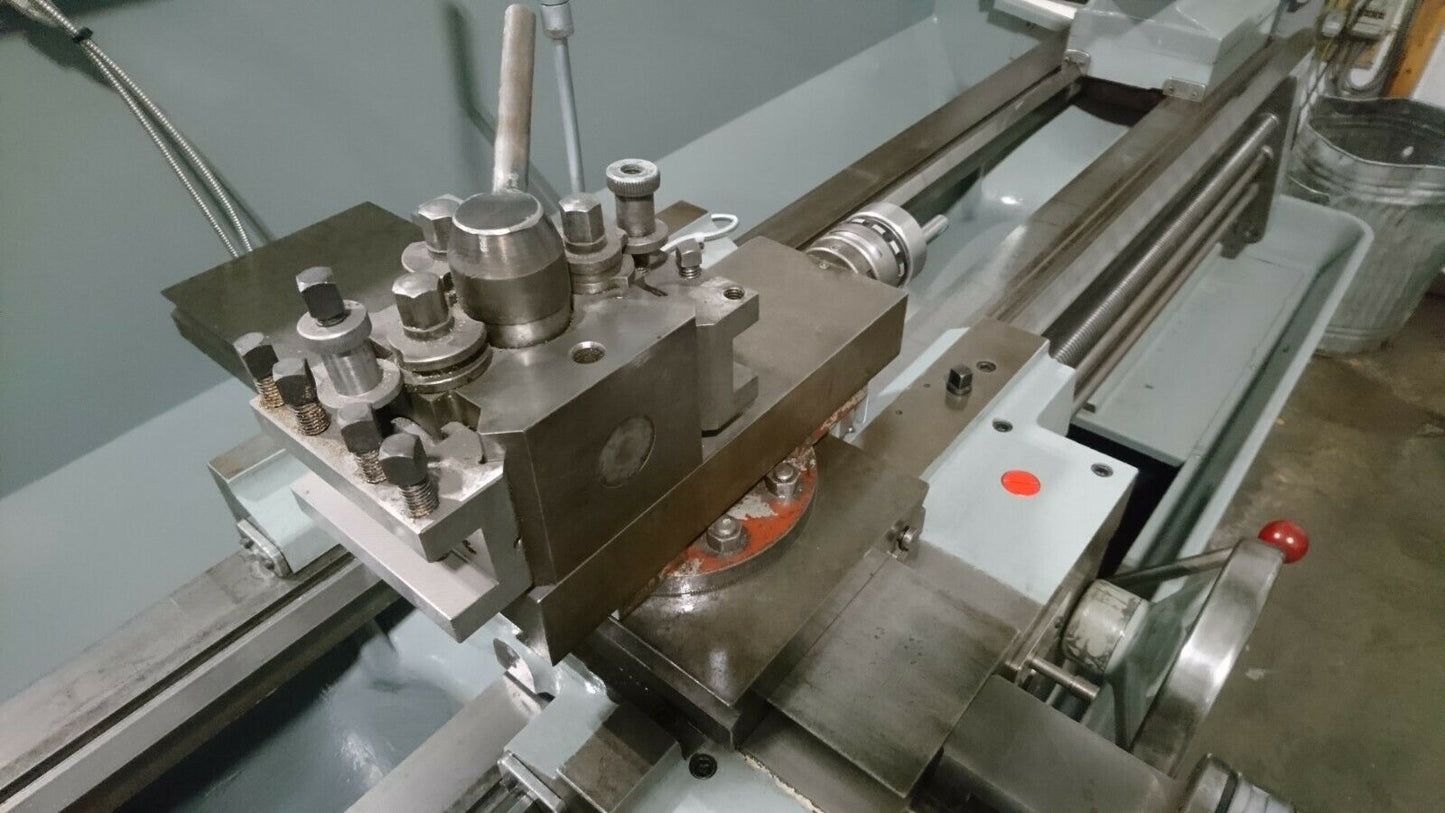

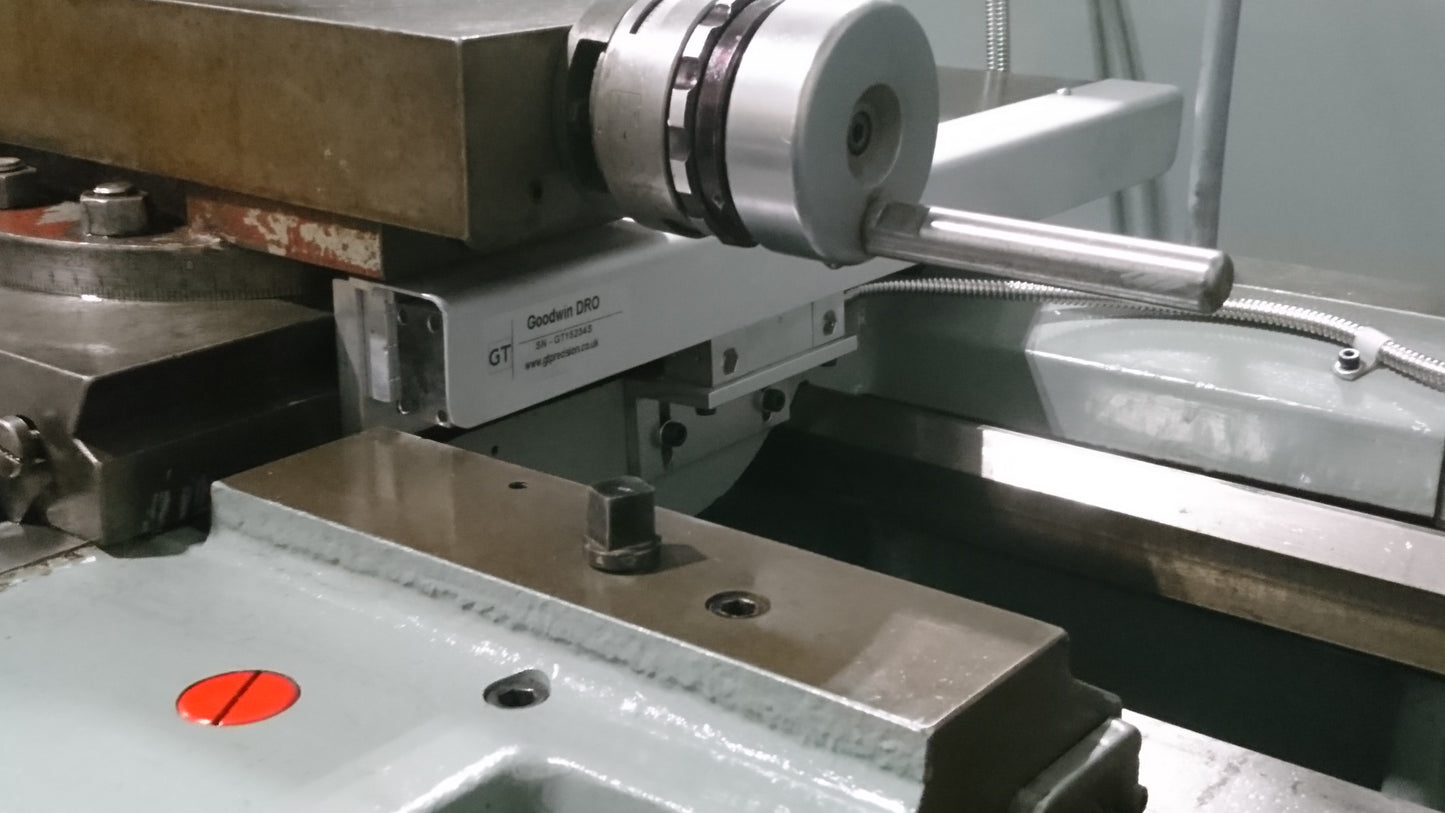

The X axis slide comes pre assembled with the special backing bar and cover the X axis slide is placed in side so you can see straight away how the scale will be fixed to the X axis cross slide. The fitting instructions have detailed pictures to guide you through the fitting process.

The Z axis scale is supplied with the scale cover and a full fitting kit which is specific to the machine, the Mascot lathe has an angled rear bed and all the fitting kit will allow easy fitting of the scale even with the angled bed - detailed pictures are included in the fitting instructions.

We also offer a fitting service for all our DRO systems for a quote please email over your contact details including phone number the fitting address, plus some pictures of your machine - we supply full RAMS and Insurance details prior to the fitting day,
